Dump Semi Trailer for Sale | U-shape & rear tipping

4Models available

U-shape & rear tipping

Dump Semi Trailer

Tipping trailers take the hardest punishment of any trailer type, so the specification decisions that matter are the steel grade, the floor thickness and the quality of the hydraulic cylinder.

U-shape body sheds sticky loads — A rounded profile discharges damp sand and clay cleanly where a box body would hold material back.
Floor plate thickness matched to the cargo — 8 mm as standard, 10 mm available for rock and recycled demolition material.

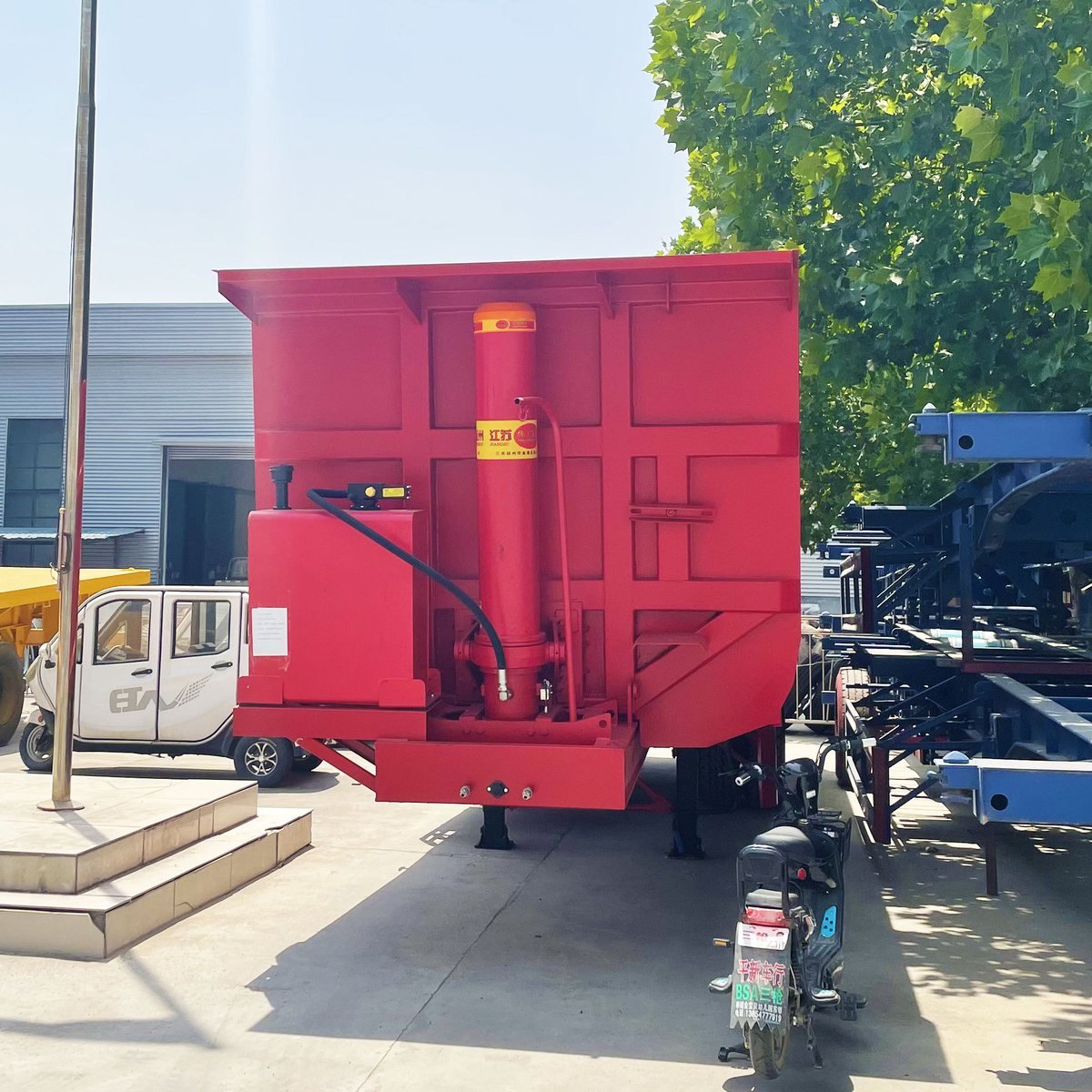

Genuine HYVA hydraulic systems — Front-end and telescopic cylinders with the seals and valves available worldwide.
Reinforced front wall and sub-frame — Doubled plate at the impact zone and extra cross members under the body.

Request a quotation WhatsApp us

Models & Specifications

Dump Semi Trailer Range

Specifications below are our standard build. Engine, axle ratio, body size, colour and drive side can all be changed — tell us what you need.

40 – 60 Ton

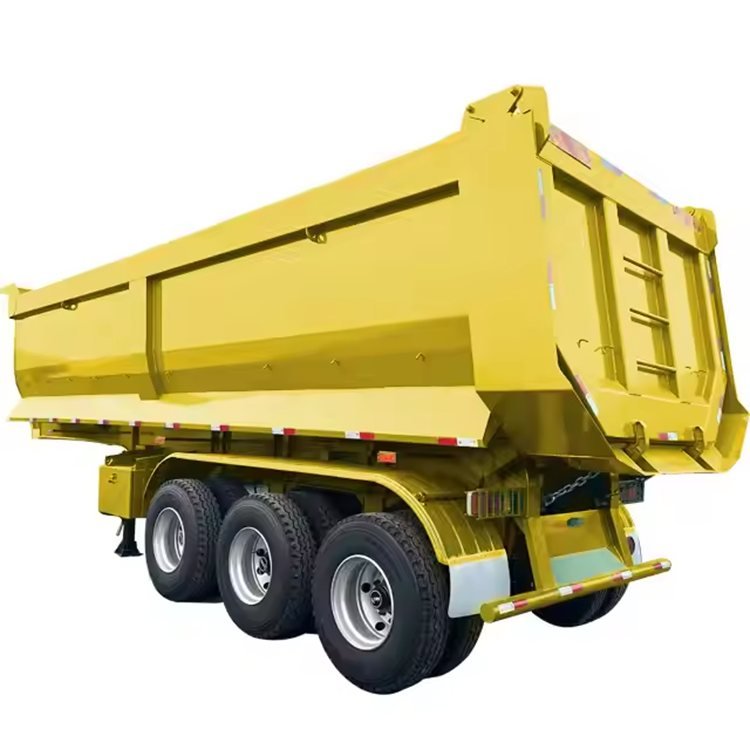

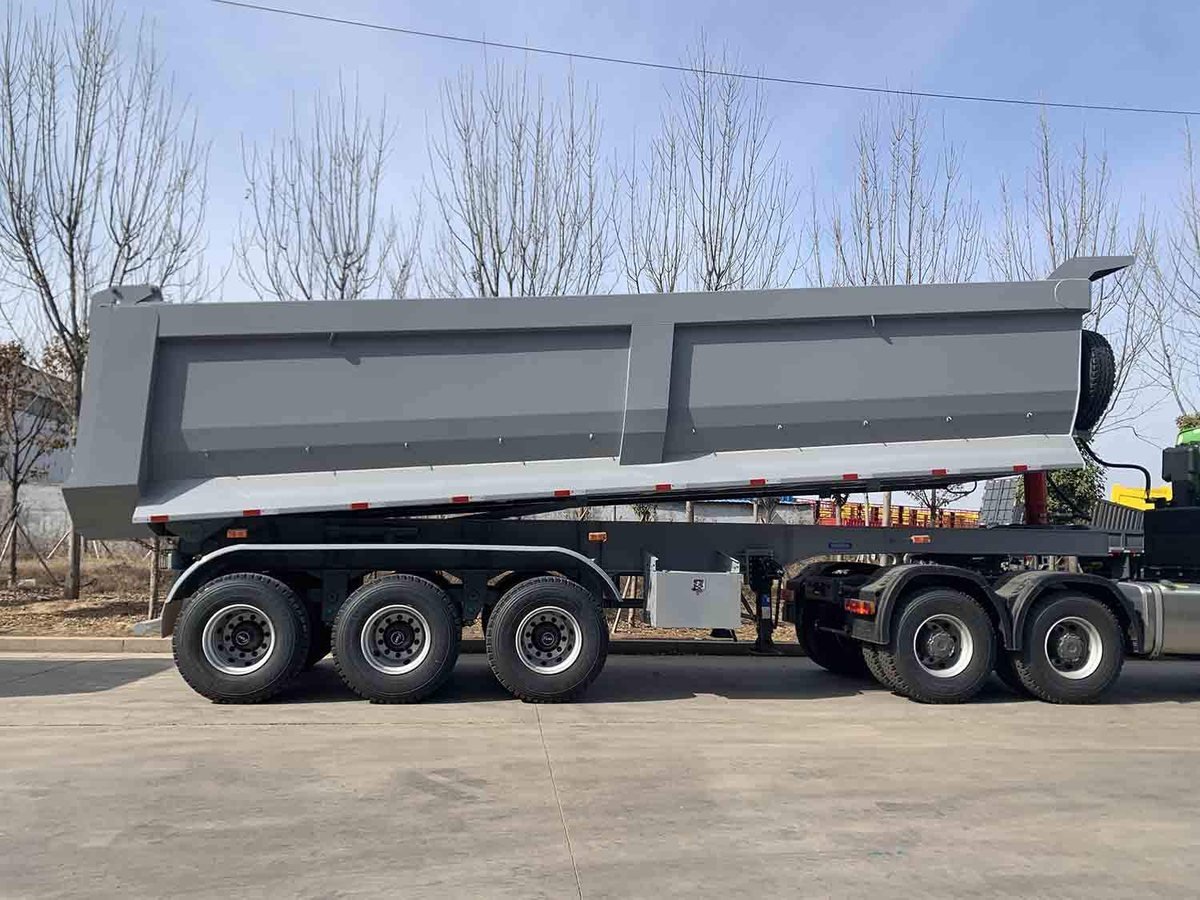

U-Shape Dump Semi Trailer

U-shaped tipping trailer in high-tensile steel that sheds sticky loads cleanly and lowers the centre of gravity.

40 – 60 Ton 12 Month Warranty

U-Shape Dump Semi Trailer — key specifications
Type	U-shape tipping semi trailer
Volume	28 – 35 cbm
Body steel	Q345B / NM450, floor 8 mm
Axles	3 × 13 T FUWA / BPW
Lifting	HYVA 160-4-05200 cylinder
Suspension	Mechanical or air
Landing gear	28 T
King pin	3.5" bolted

Get a quote See more photos

40 – 60 Ton

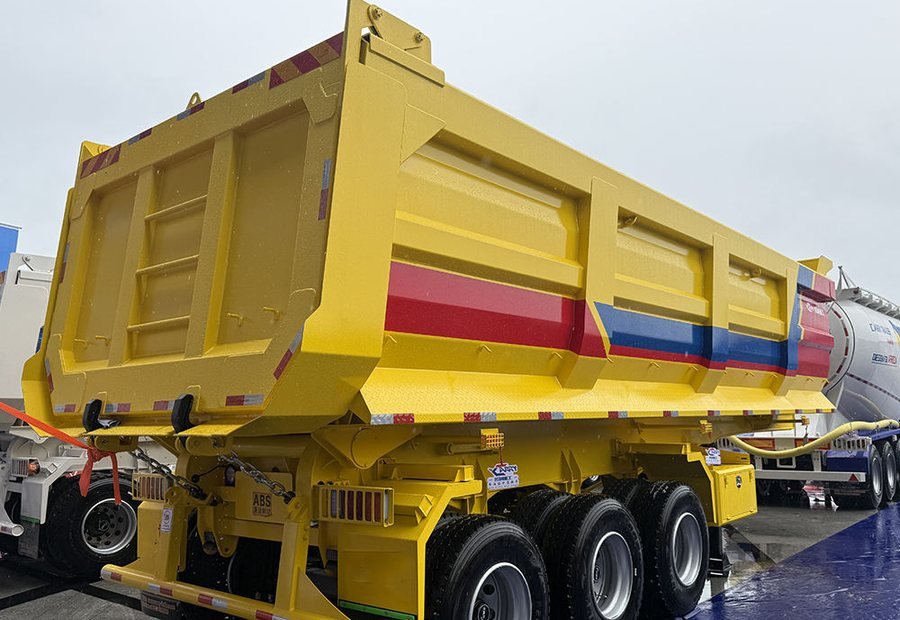

Rear Dump Semi Trailer

Classic end-tipping trailer with a box or half-pipe body and a single telescopic cylinder for fast discharge.

40 – 60 Ton 12 Month Warranty

Rear Dump Semi Trailer — key specifications
Type	Rear tipping semi trailer
Volume	25 – 40 cbm
Body steel	Q345B, floor 8 mm, side 6 mm
Axles	3 × 13 T
Lifting	HYVA FC / telescopic cylinder
Suspension	Heavy duty leaf spring
Tyre	12R22.5, 12 pcs
King pin	3.5"

Get a quote See more photos

40 – 80 Ton

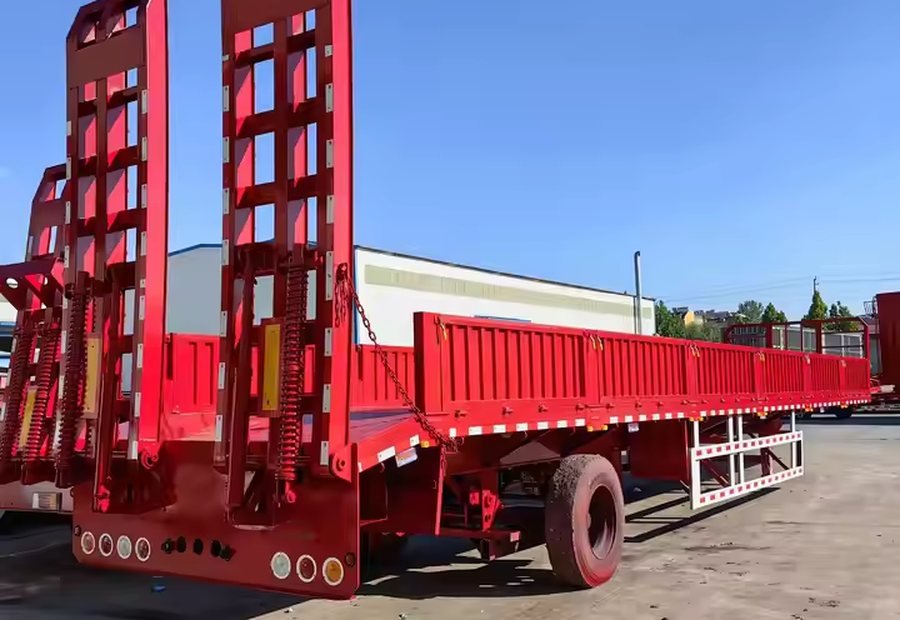

Lowbed Dump Trailer

Low-deck tipping trailer for sites with height restrictions, with a reinforced floor for rock and demolition debris.

40 – 80 Ton 12 Month Warranty

Lowbed Dump Trailer — key specifications
Type	Lowbed tipping semi trailer
Axles	3 × 13 T or 4 × 13 T
Deck height	1100 mm
Body steel	Q345B / NM450
Lifting	HYVA telescopic cylinder
Suspension	Heavy duty leaf spring
Tyre	12R22.5, 12 – 16 pcs
Brake	Dual line air, ABS optional

Get a quote See more photos

45 – 65 cbm

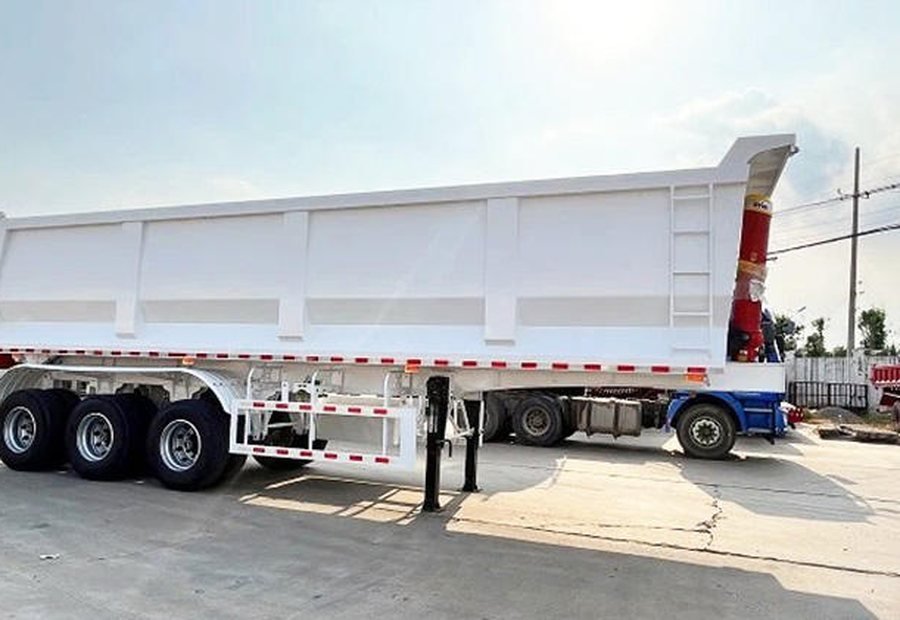

Grain & Bulk Dump Trailer

Large-volume aluminium or steel tipping trailer for grain, coal and fertiliser with a quick-release tailgate.

45 – 65 cbm 12 Month Warranty

Grain & Bulk Dump Trailer — key specifications
Type	Bulk tipping semi trailer
Volume	45 – 65 cbm
Body	Steel or aluminium
Axles	3 × 13 T
Lifting	Front-end cylinder
Suspension	Air suspension
Tailgate	Hydraulic quick release
Tyre	12R22.5, 12 pcs

Get a quote See more photos

Gallery

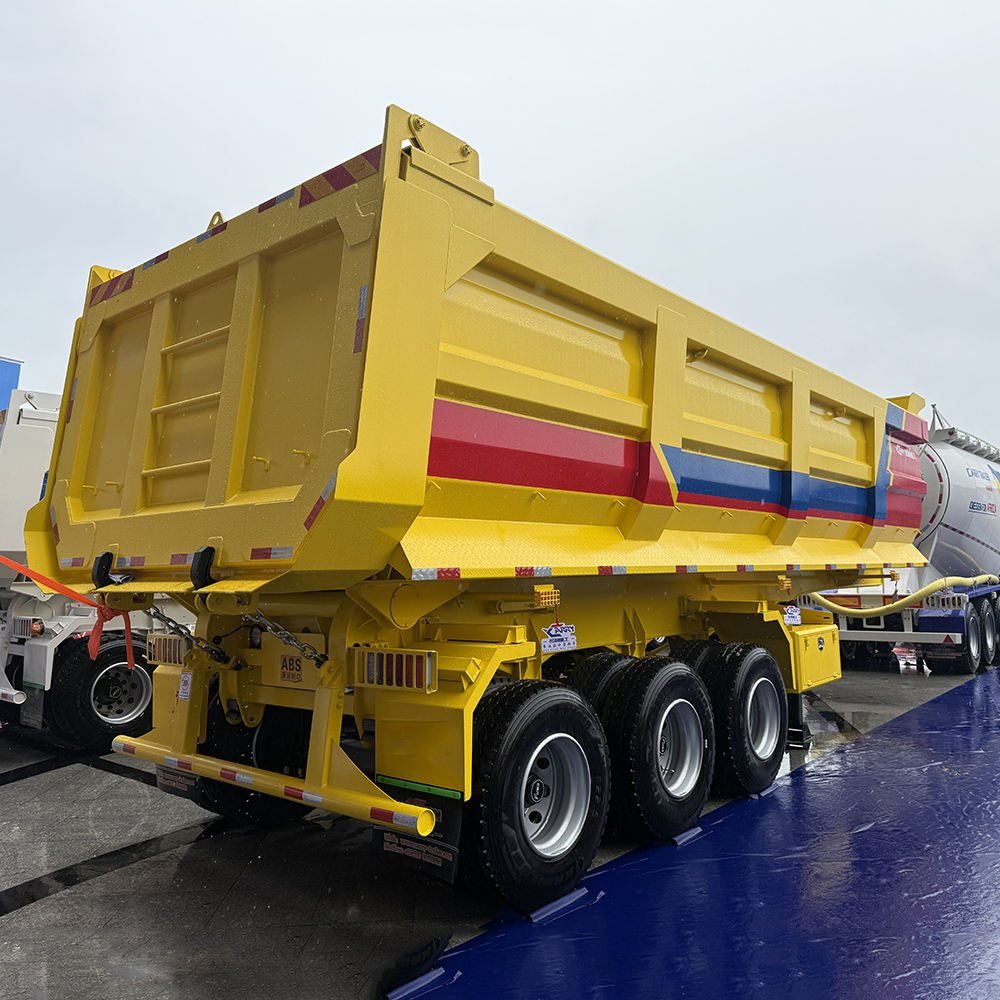

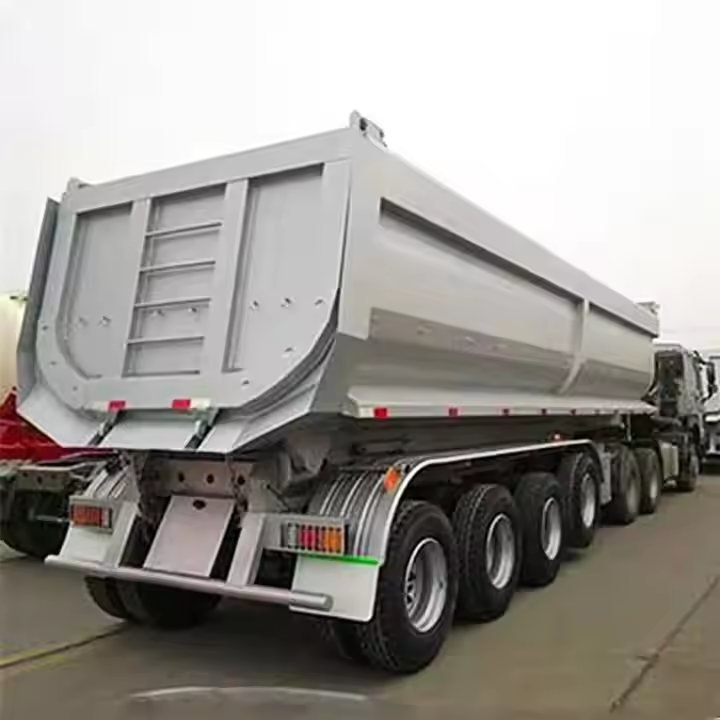

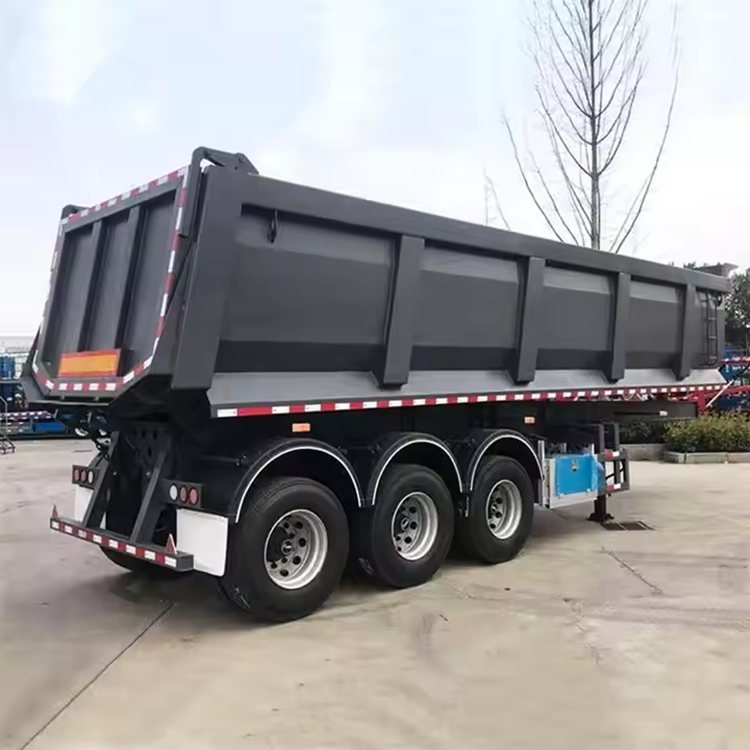

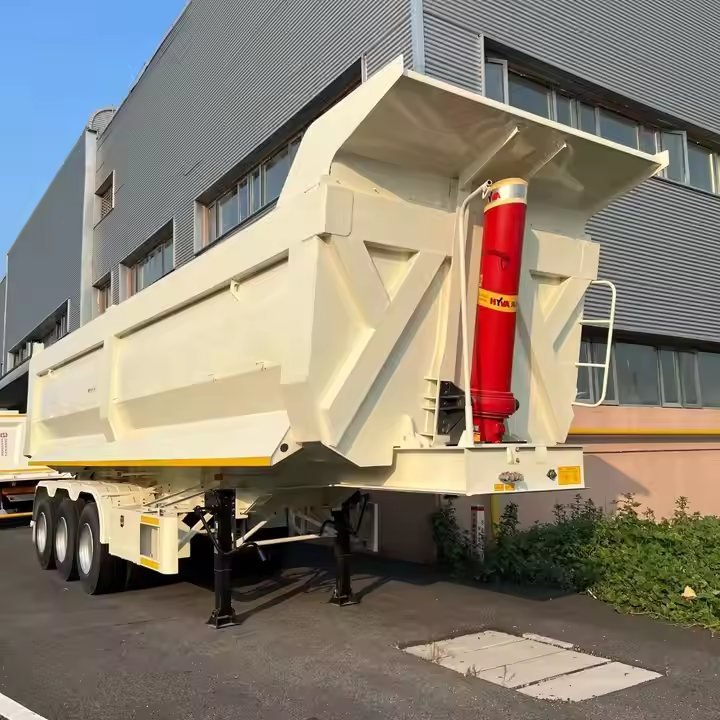

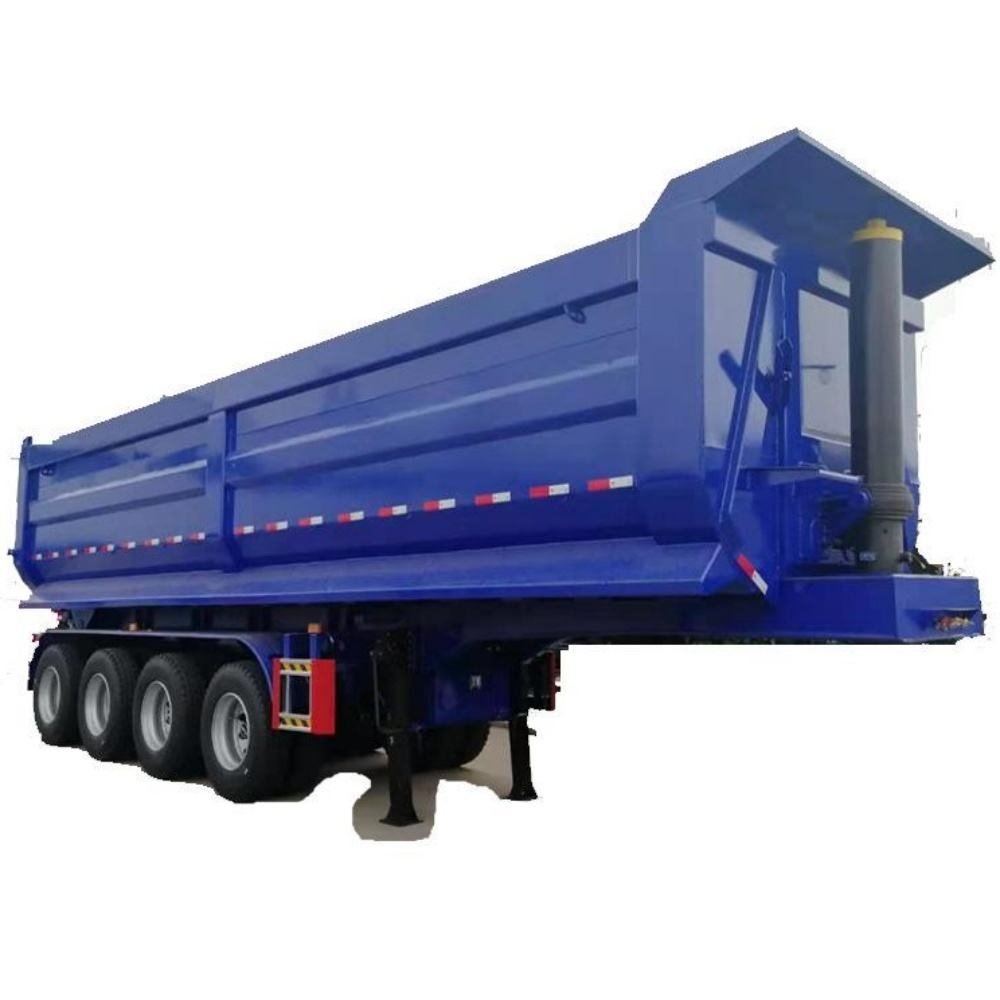

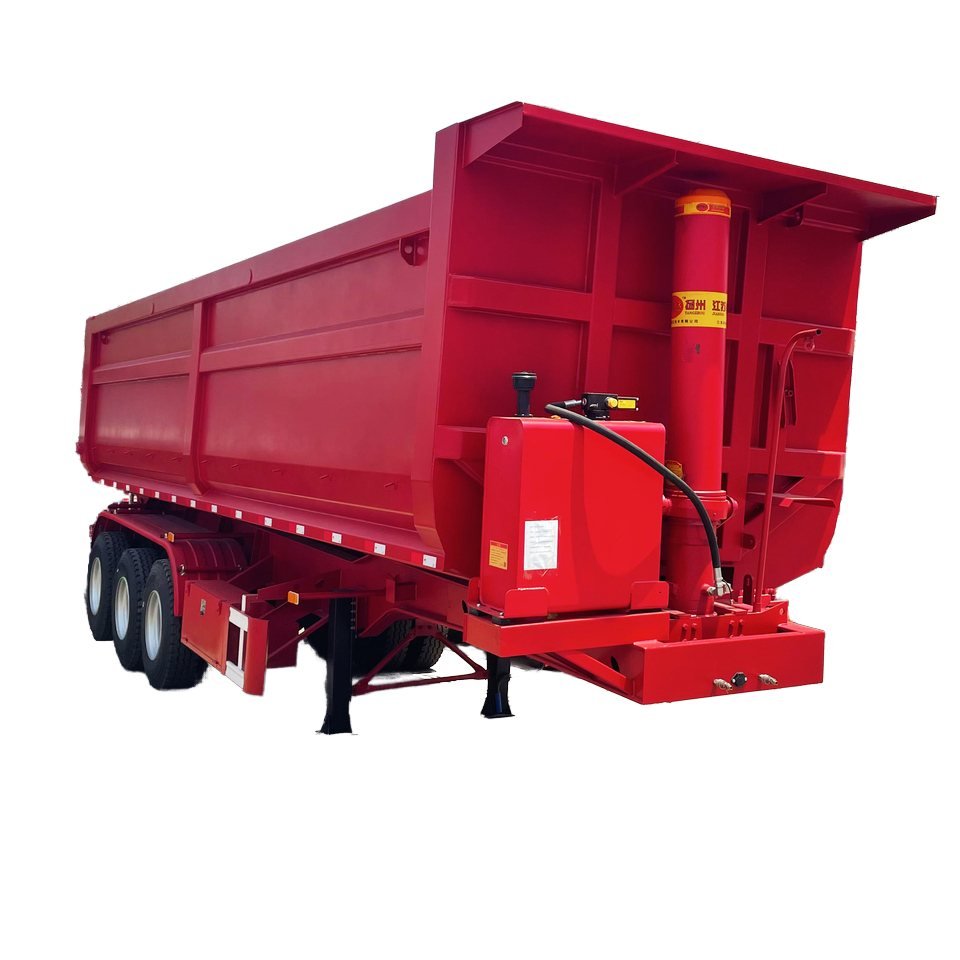

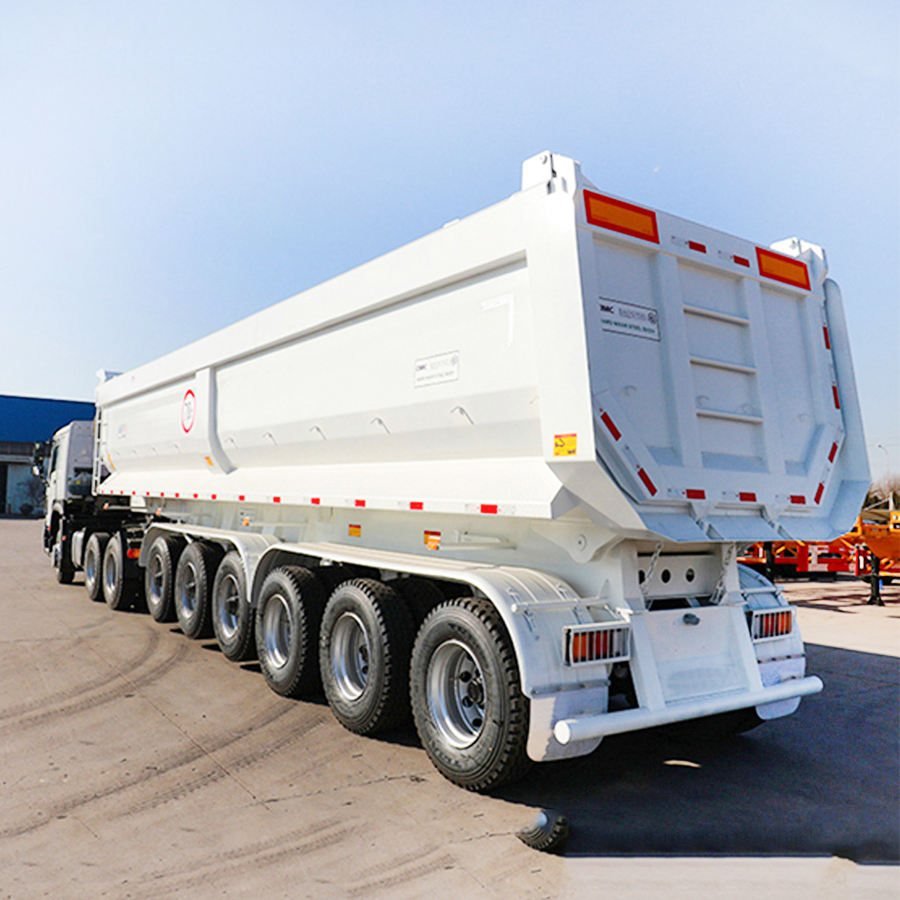

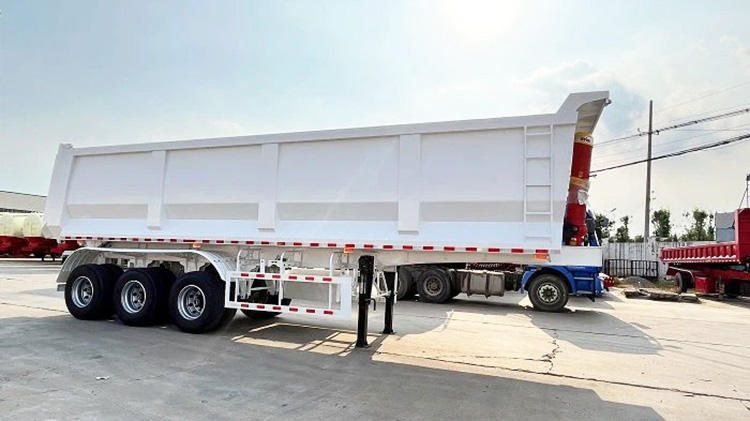

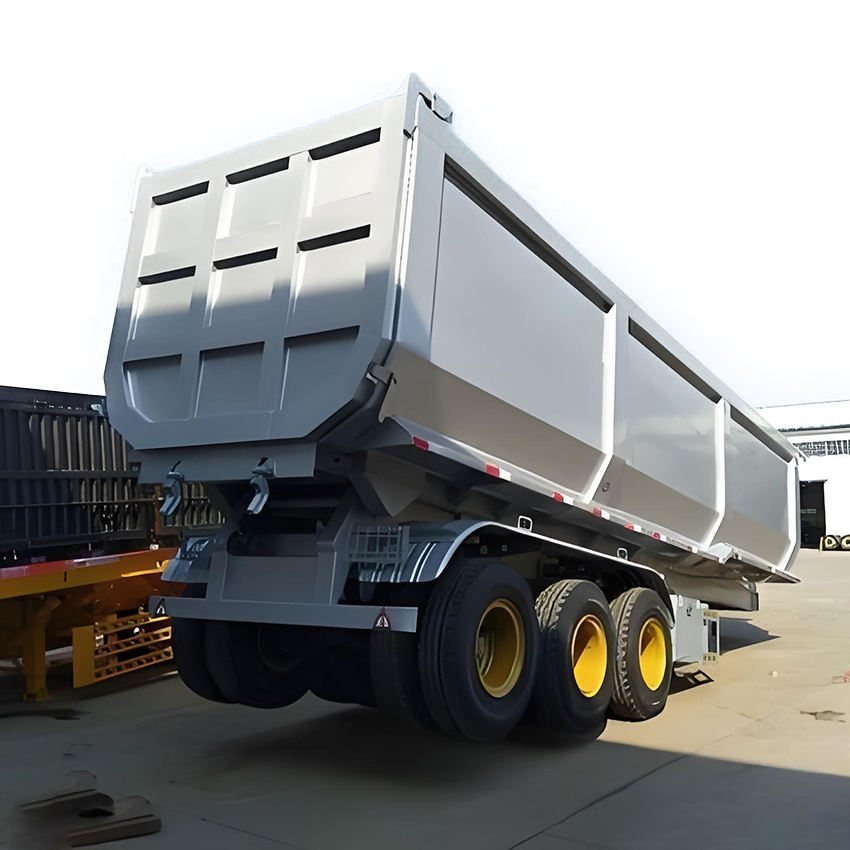

Dump Semi Trailer in Production and Delivery

Click any photo to open it full size.

Factory Direct Pricing

We manufacture in our own plant in Liangshan, so you buy at factory cost with no trading margin in between.

Certified Quality System

WMI code LA9/CRD, registered manufacturer code, ISO quality system and Intertek verified supplier certification.

Export Documentation

Container stuffing, RoRo booking, CO, Form A, inspection certificates and full customs paperwork handled in-house.

After-Sales Parts Supply

A dedicated spare parts warehouse keeps axles, brake chambers, valves and lamps on the shelf for fast dispatch.

Frequently Asked

Dump Semi Trailer Questions

U-shape discharges sticky and damp material better and has a lower centre of gravity. Box bodies carry a slightly larger volume for the same footprint. For sand, clay and coal we recommend U-shape.

With an 8 mm floor and normal maintenance, seven to ten years of daily use is realistic. The floor plate is the consumable item — we can supply replacement floors.

Yes. We build side-tipping and three-way tipping trailers for specific commodities such as sugar cane and timber.

We supply single units for trial orders and full container loads for fleet buyers. Mixed orders are welcome — for example one tractor truck together with trailer axles and spare parts in the same shipment. For spare parts the typical MOQ is 10 to 20 pieces.

Yes. Almost every truck in our range can be supplied in either left hand drive or right hand drive, and we build to the emission standard required by your market — Euro II, Euro III, Euro V or local equivalents.
