Construction machines are bought on uptime, so we specify proven Cummins and Weichai engines, load sensing hydraulics and an undercarriage that can be rebuilt rather than replaced.
Specifications below are our standard build. Engine, axle ratio, body size, colour and drive side can all be changed — tell us what you need.

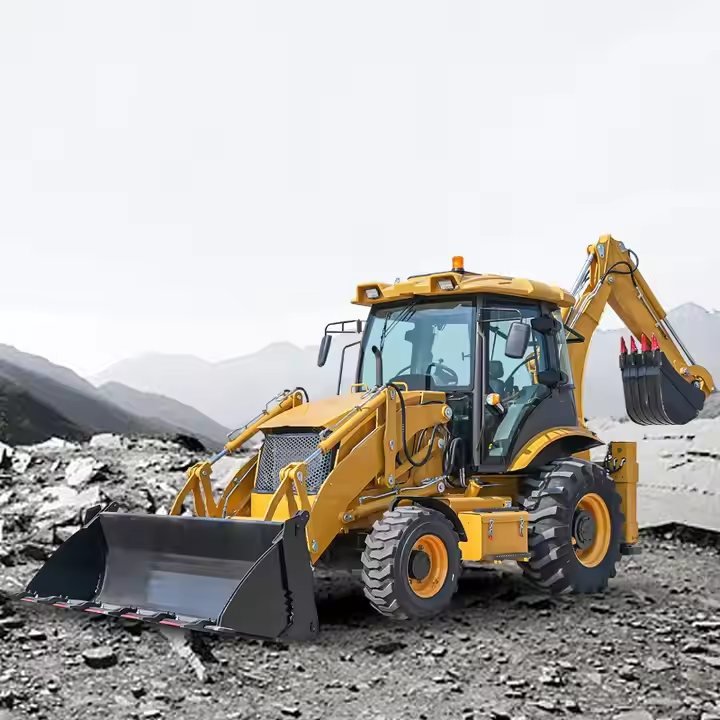

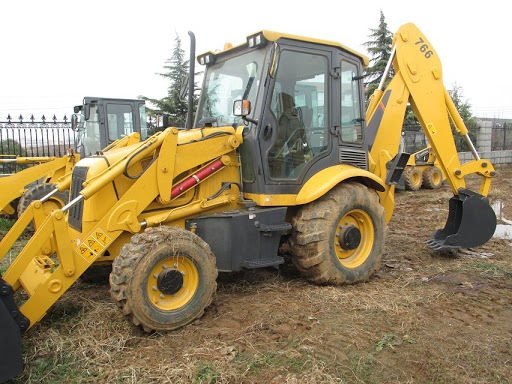

Versatile backhoe loader with a 4x4 driveline, side-shift backhoe and quick coupler — one machine for digging and loading.
| Model | WZ30-25 |
|---|---|
| Engine | Cummins 4BTAA3.9, 85 kW |
| Drive | 4x4, powershift transmission |
| Loader bucket | 1.0 cbm, 2,500 kg lift |
| Backhoe bucket | 0.3 cbm, 5,500 mm dig depth |
| Steering | Hydraulic articulated |
| Cab | ROPS / FOPS, A/C optional |
| Tyres | 16.9-28 front, 16.9-24 rear |

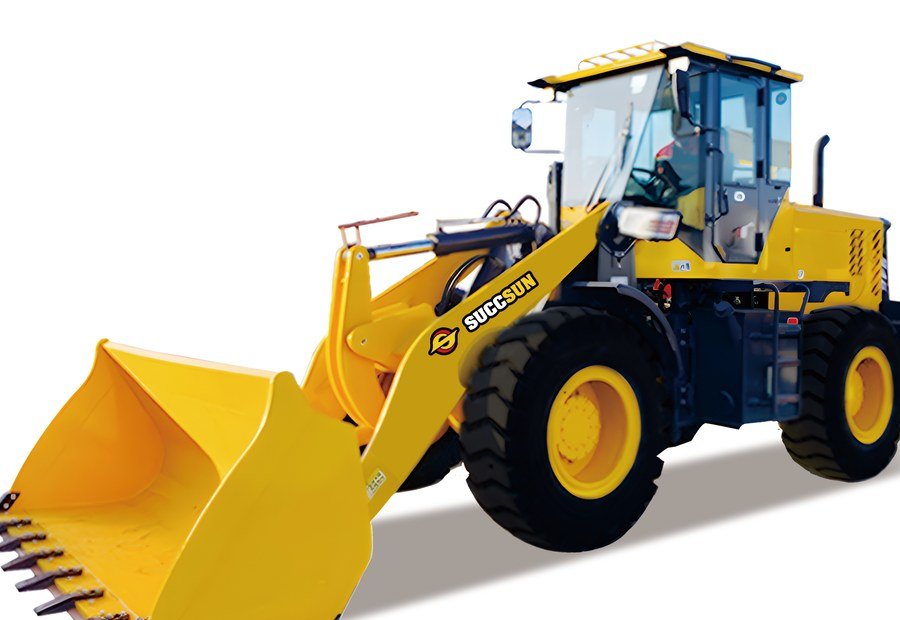

3-tonne class wheel loader with a 1.7 cbm bucket, 3,600 mm discharge height and a powershift transmission for aggregates, sand and bulk handling.
| Model | ZL946 |
|---|---|
| Engine | Luoyang YTO LR6A140-40E, 103 kW, 6 cylinder |
| Rated speed | 2,200 r/min |
| Bucket | 1.7 cbm, 3,000 kg rated load |
| Bucket width | 2,400 mm |
| Transmission | 315 powershift, 4 forward / 4 reverse |
| Drive axle | 28 series wheel reduction |
| Braking | Clamp disc air brake |

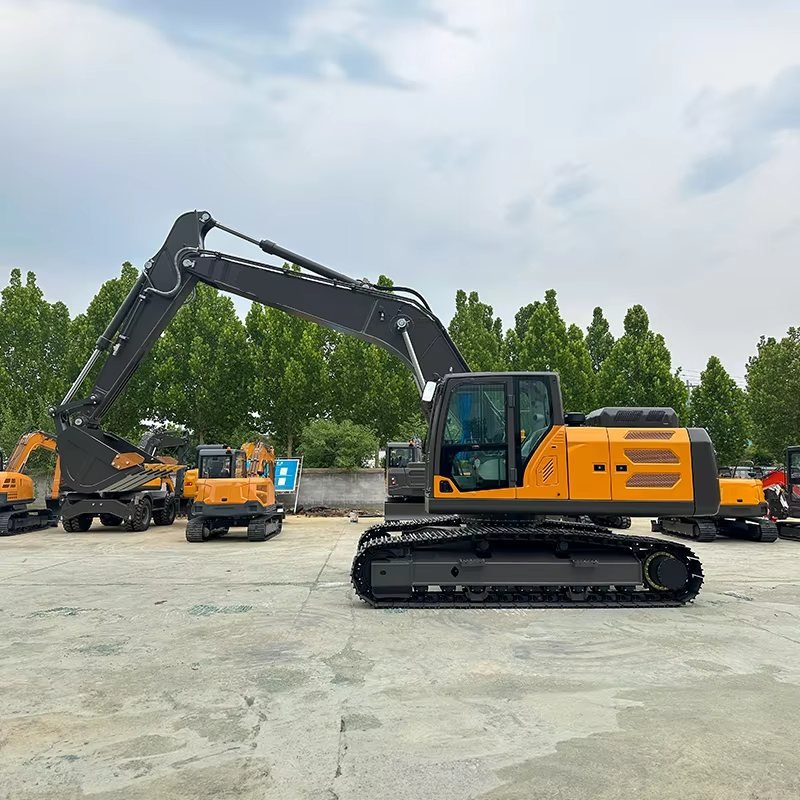

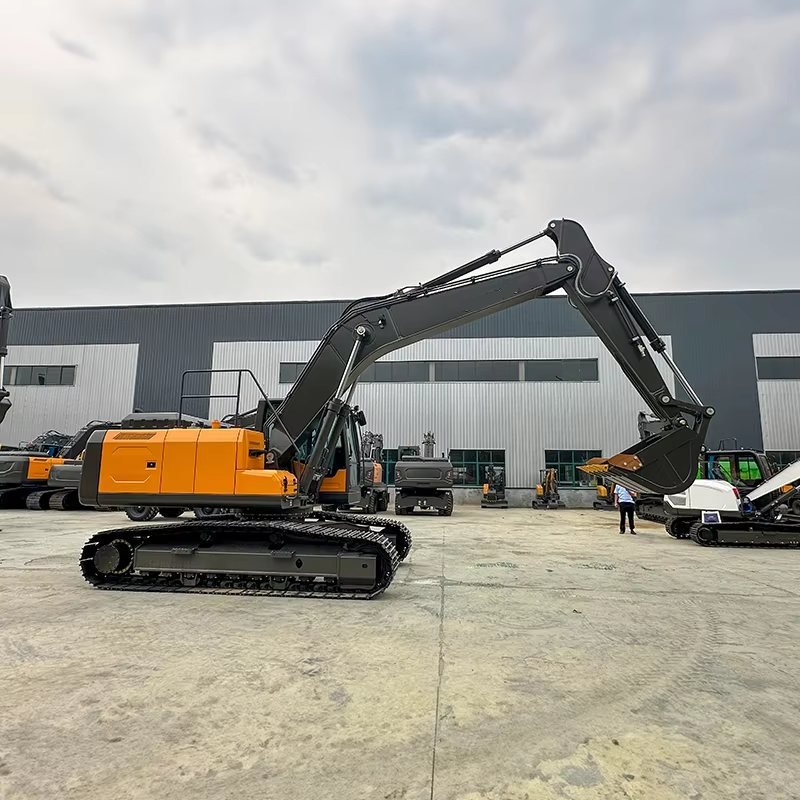

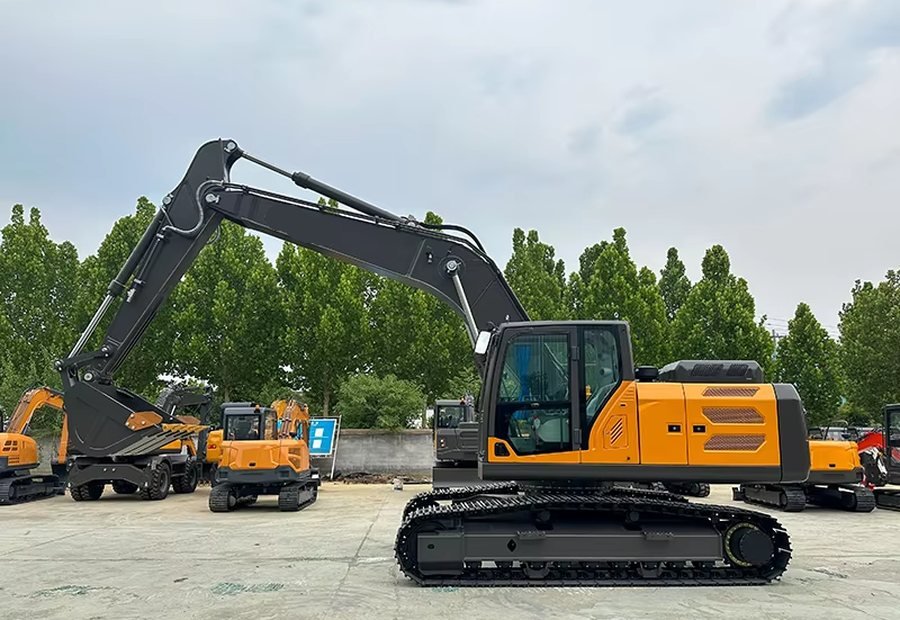

Hydraulic crawler excavator range from 13 to 36 tonnes with a reinforced boom and heavy-duty undercarriage.
| Operating weight | 13,000 – 36,000 kg |
|---|---|
| Engine | Cummins / Isuzu, 90 – 200 kW |
| Bucket | 0.4 – 1.4 cbm |
| Max dig depth | 5,500 – 7,300 mm |
| Hydraulics | Load sensing, Kawasaki / Rexroth |
| Cab | ROPS / FOPS, A/C, LCD monitor |
| Undercarriage | Heavy duty track, sealed rollers |
| Track shoe | 500 – 600 mm |

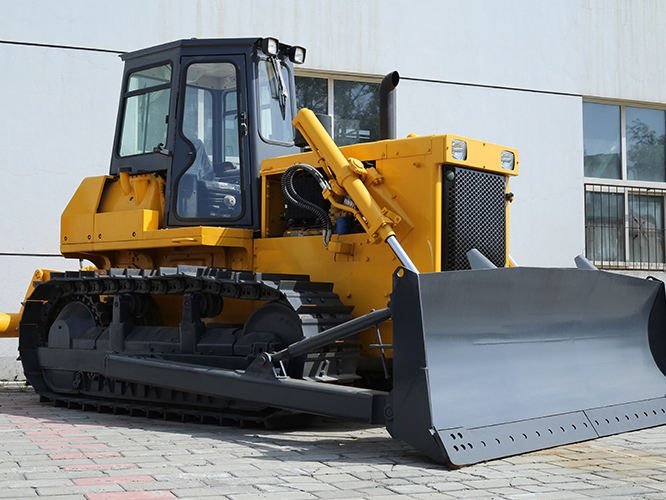

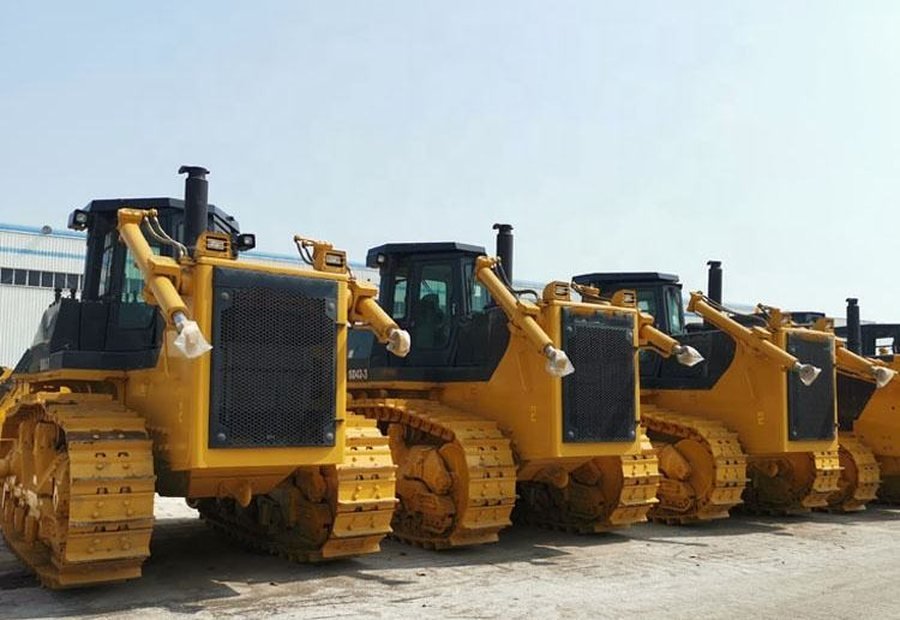

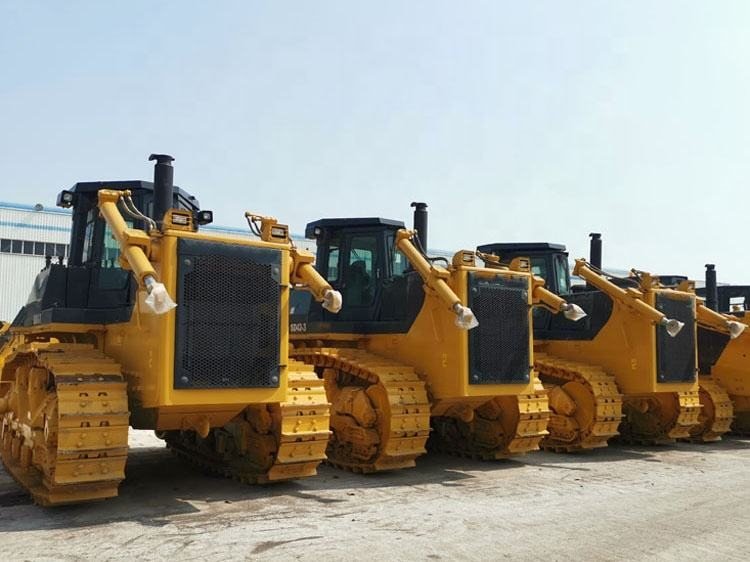

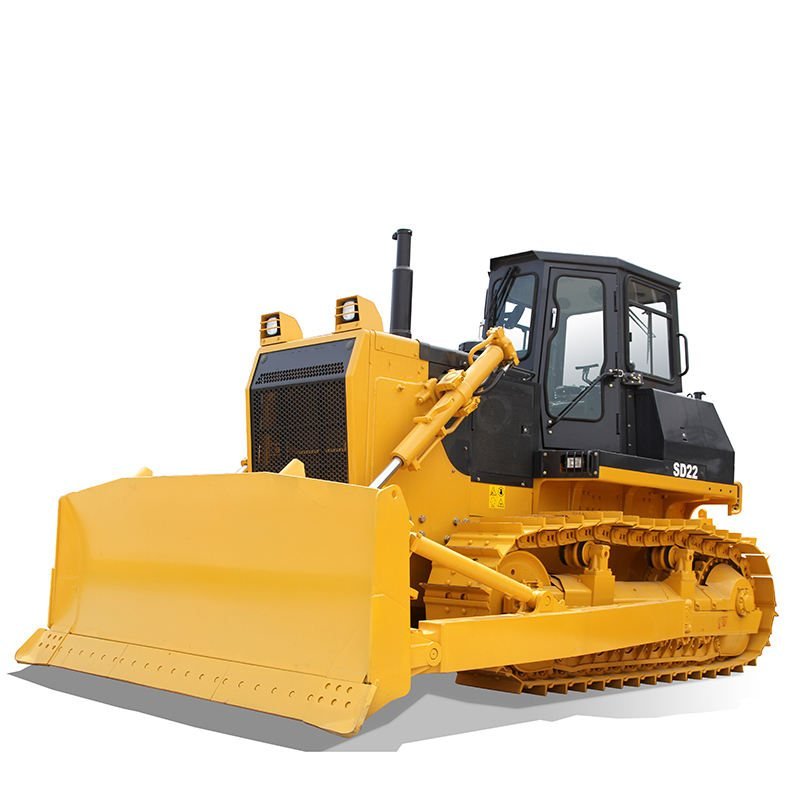

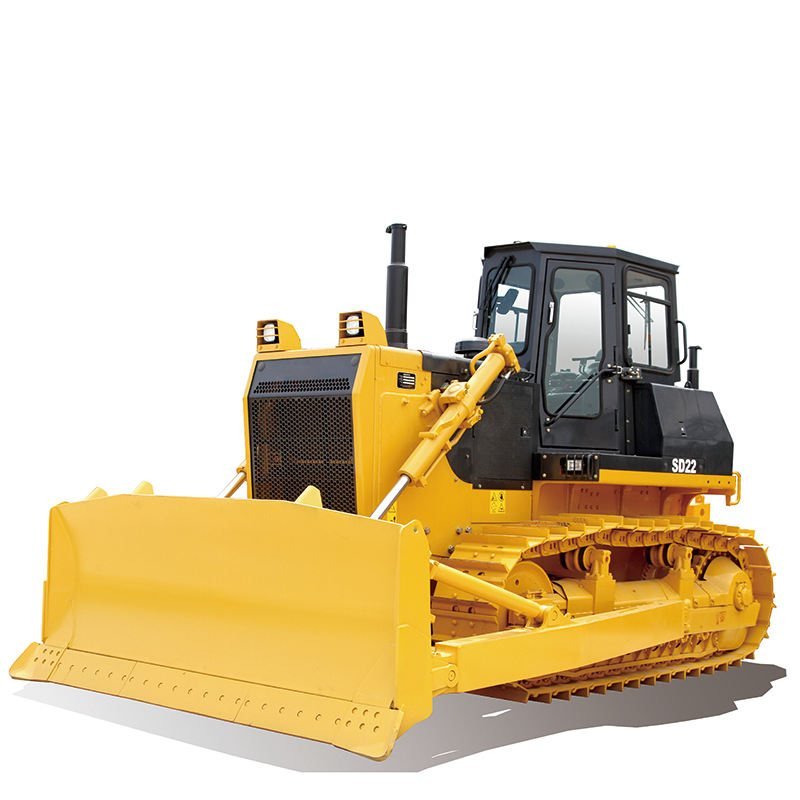

Tracked dozer with a semi-U blade and a ripper option for earthworks, mine site levelling and road construction.
| Operating weight | 16,000 – 32,000 kg |
|---|---|
| Engine | Weichai / Cummins, 120 – 235 kW |
| Blade | Semi-U, 3.8 – 8.0 cbm |
| Transmission | Power shift, 3 forward / 3 reverse |
| Undercarriage | Sealed and lubricated track |
| Ground pressure | 0.065 – 0.085 MPa |
| Cab | ROPS / FOPS, A/C |
| Max speed | 11 km/h |
Click any photo to open it full size.
We manufacture in our own plant in Liangshan, so you buy at factory cost with no trading margin in between.
WMI code LA9/CRD, registered manufacturer code, ISO quality system and Intertek verified supplier certification.
Container stuffing, RoRo booking, CO, Form A, inspection certificates and full customs paperwork handled in-house.
A dedicated spare parts warehouse keeps axles, brake chambers, valves and lamps on the shelf for fast dispatch.
6x4 and 8x4 tipper trucks with reinforced cargo bodies for mining, construction and quarry haulage.
View range
Heavy duty truck heads from 340HP to 540HP, matched to any semi trailer you operate.
View range
Refrigerated box trucks, concrete mixer trucks and fuel tankers built on proven chassis.
View range
Battery electric trucks with 282 – 422 kWh packs and fast DC charging for urban and short-haul duty.
View rangeSend the specification and your destination port — we will reply with a quotation, shipping options and a production schedule within 24 hours.
